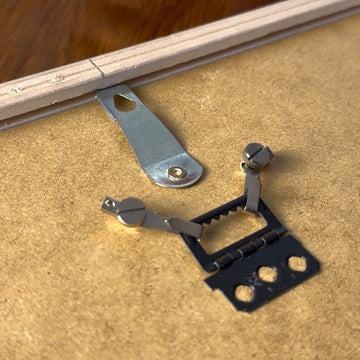

Mark the position for the two screws where the cable hooks will later be attached (3x25). Ensure they are at the same height on both sides (approx. 50-80mm).

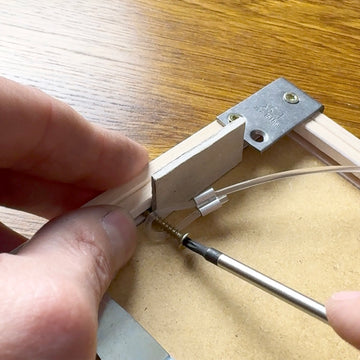

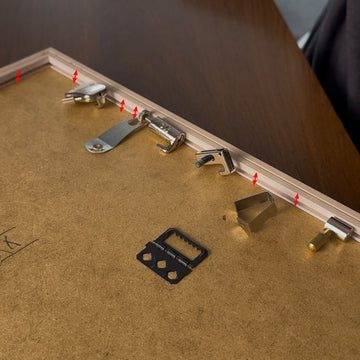

Screw in the 3x25 screws at the markings, ensuring sufficient overhang (approx. 10 mm) so that the attached cable hooks do not protrude beyond the back of the picture.

Position the Bigfoot with the spacer underneath and secure it with two screws (3x12) on each side. Ensure that the nylon cable or rope later runs alongside the Bigfoot and not diagonally across the mounting area.

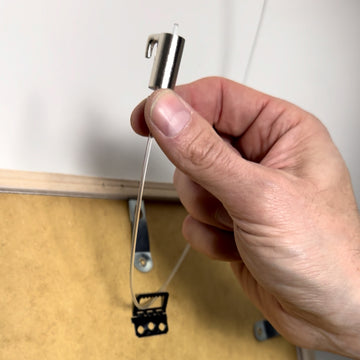

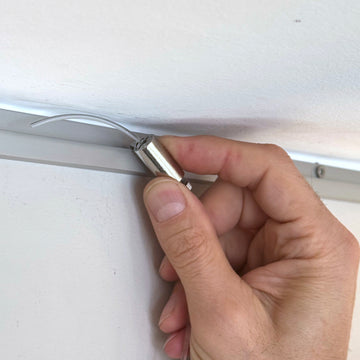

Bring the cable hook to the desired height.

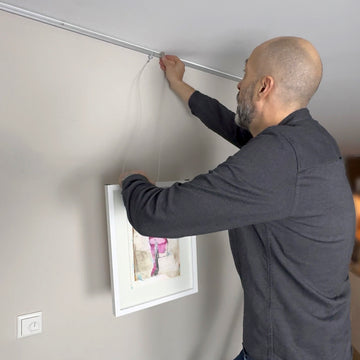

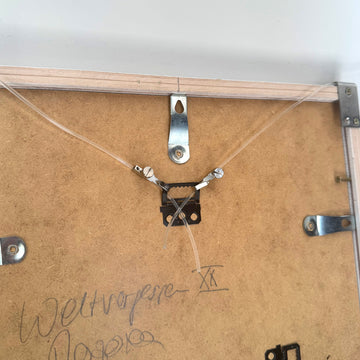

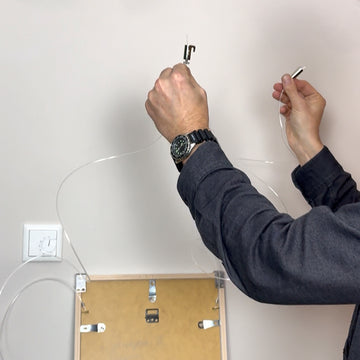

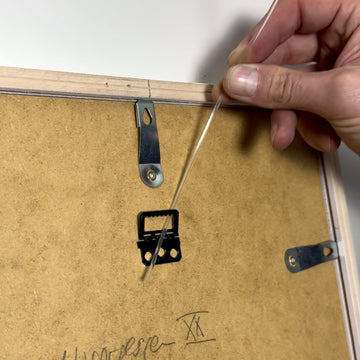

Attach the cable hooks to the screws on the back of the picture and hang it up.

The picture is now tilting forward away from the wall. Now check the horizontal alignment of the picture (is it hanging straight?), and adjust the cable length if necessary, before hanging the Bigfoot!

Guide the cable, keeping it taut (!), between the Bigfoot and the picture and place it in one of the grooves. Use the same position on the other side. If the picture gapes away from the wall at the top, choose a groove in the direction of the big toe; if it gapes away from the wall at the bottom, choose a groove in the direction of the little toe.

The picture hangs nice and flat on the wall.

Position the Bigfoot frame using spacers and mark the screw positions with a scribe or a suitable pen. Later, a screw must be driven through the frame into the underlying wood at these points.

Mark the starting point for the drill bit with a center punch.

Result of the center punching at the previously marked position

Drill a through hole using a suitable steel drill bit. 4mm diameter recommended. Remove any burrs with a countersink or large drill bit.

Insert the painting into the frame, position Bigfoot using spacers, and secure with suitable screws. The 3x12 screws supplied for standard applications are too short in this case; 3x20 screws must be used (not included in delivery).

Proceed with the further hanging as described in the standard instructions .

The bottom picture is installed exactly as described in the instructions included with Bigfoot. Hang it at the desired height using hooks and ropes and check that the picture is hanging straight. (See also the tutorial/installation instructions above for hanging Bigfoot.)

For pictures hung above them, a pair of Bigfoots is also attached to the bottom of the picture, as otherwise the tensioned rope would pull the upper pictures away from the wall at the bottom. The Bigfoots opposite each other between the pictures must be of identical size. Please bear in mind that the rope and the top pair of Bigfoots support the total weight of all the pictures!

Attach 2 pairs of Bigfoots to the top and bottom of the picture above. It is not necessary to attach cable hooks to this picture. Ideally, all Bigfoots on all pictures should be positioned exactly vertically above each other.

Position the upper picture above the lower picture as desired, taking into account the deflection length of the cable. With this type of hanging (without additional cable hooks), the upper picture must be held with one hand at all times to prevent it from falling down.

Hang the cable in the same groove as the lower Bigfoot.

Check position and adjust if necessary.

To make fine adjustments, lift the rope out of the Bigfoot groove and:

To lower the picture, push the rope slightly backward.

To raise the picture, pull the rope slightly forward.

Result of the assembly

Now attach the cable to the upper Bigfoots in the picture.

Die Bilder hängen flach an der Wand übereinander. Für weitere Bilder die Schritte 3-9 wiederholen.
